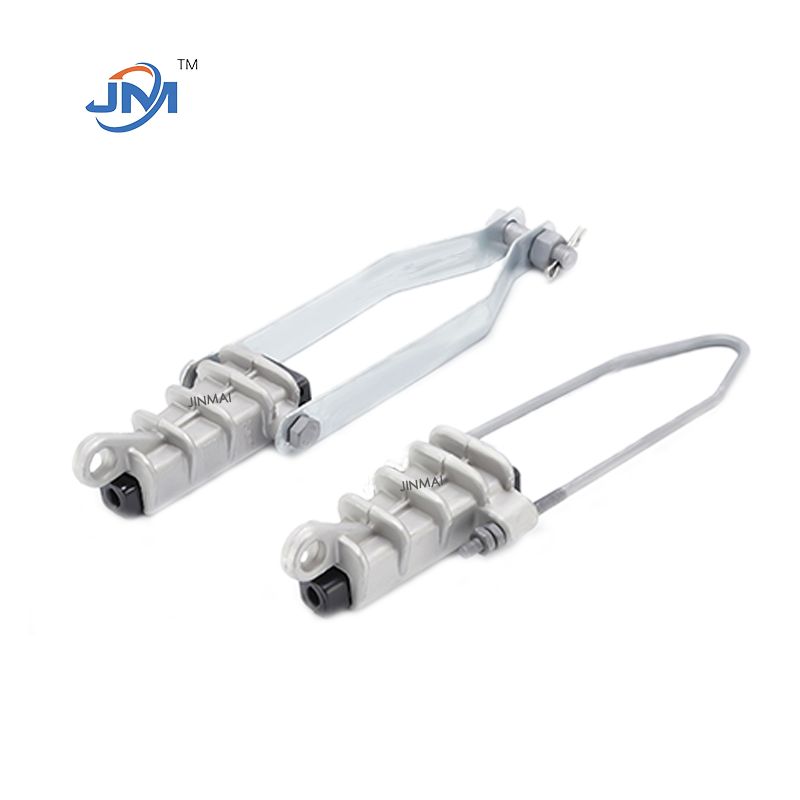

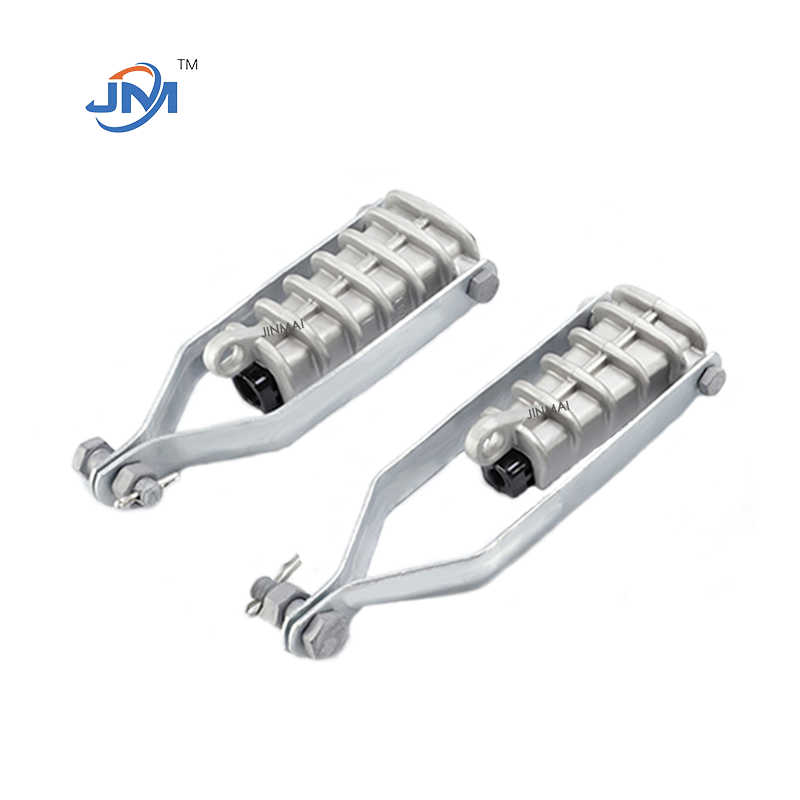

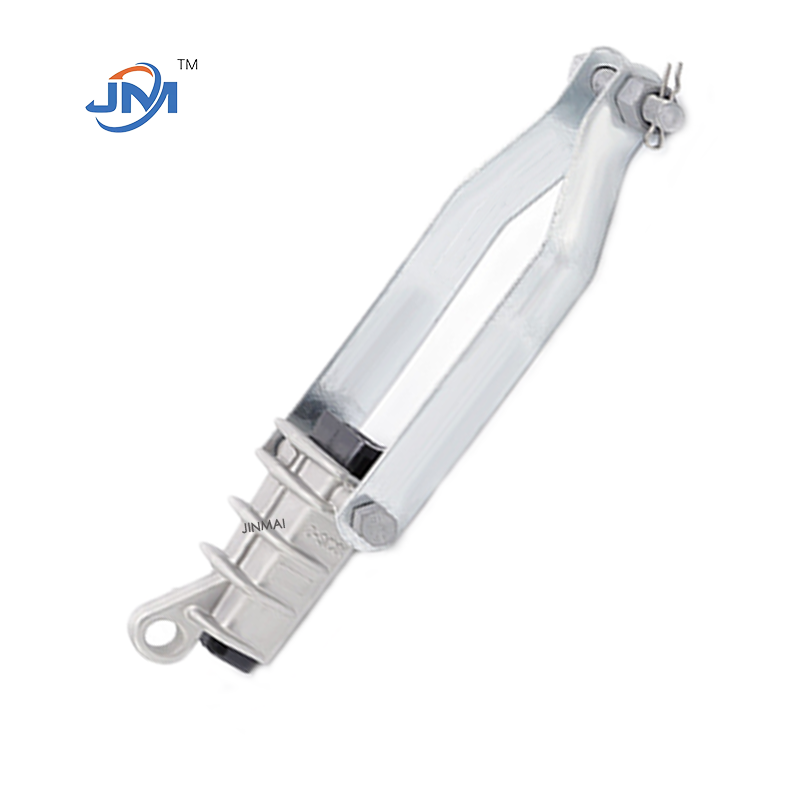

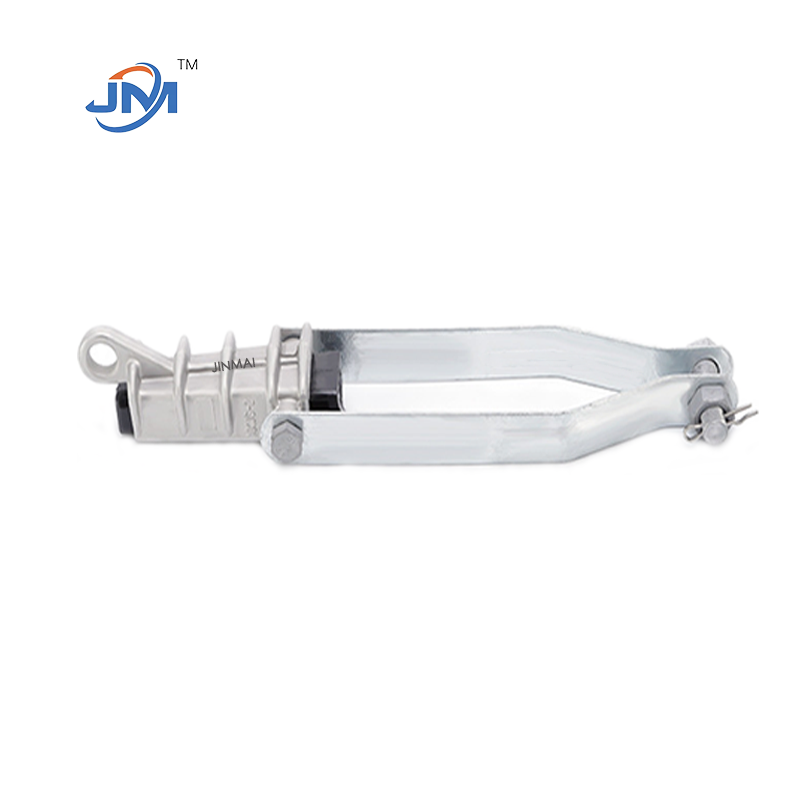

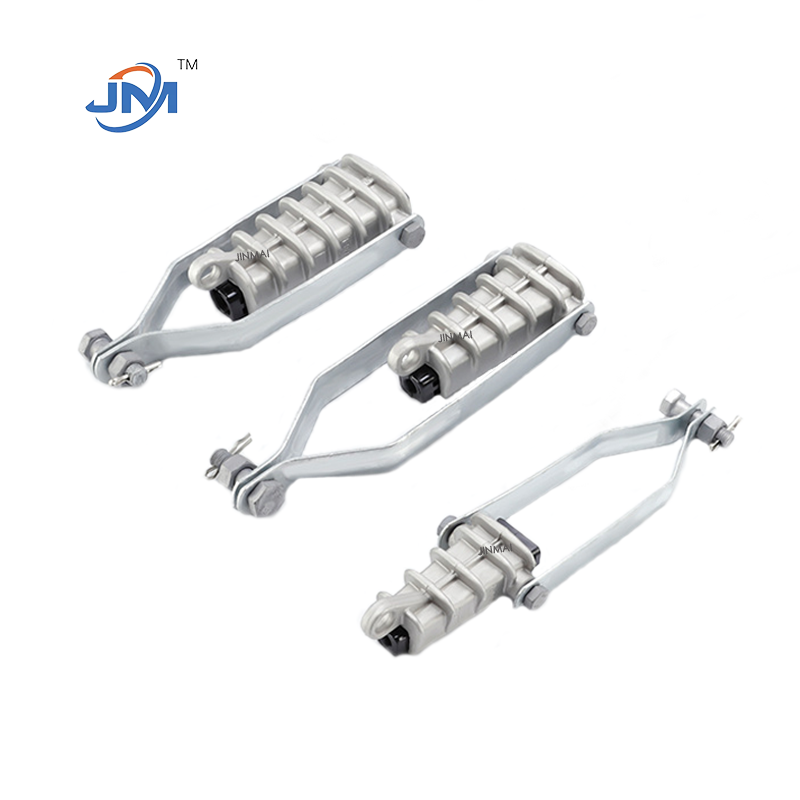

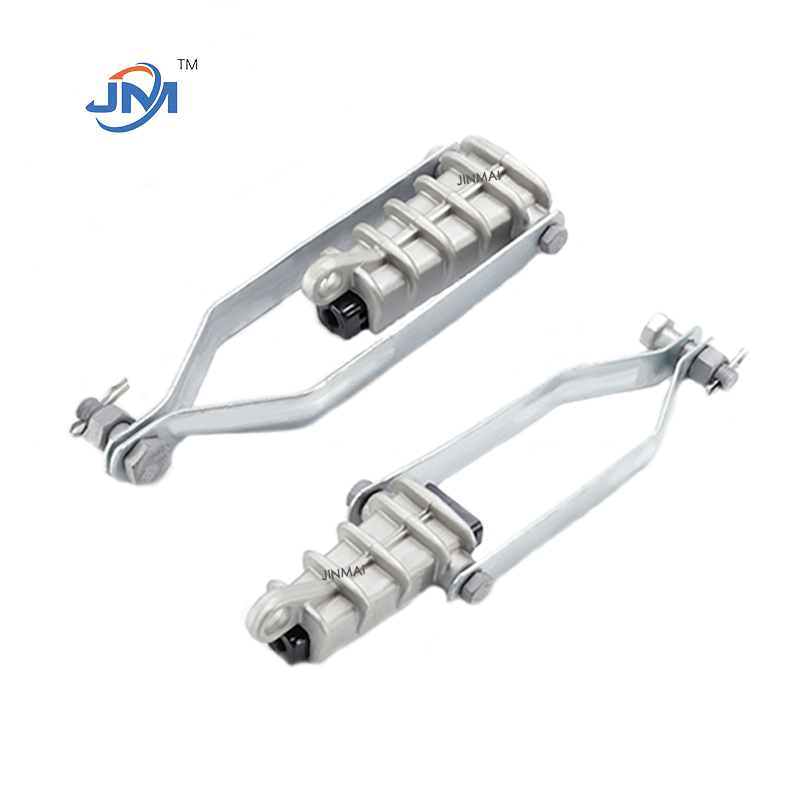

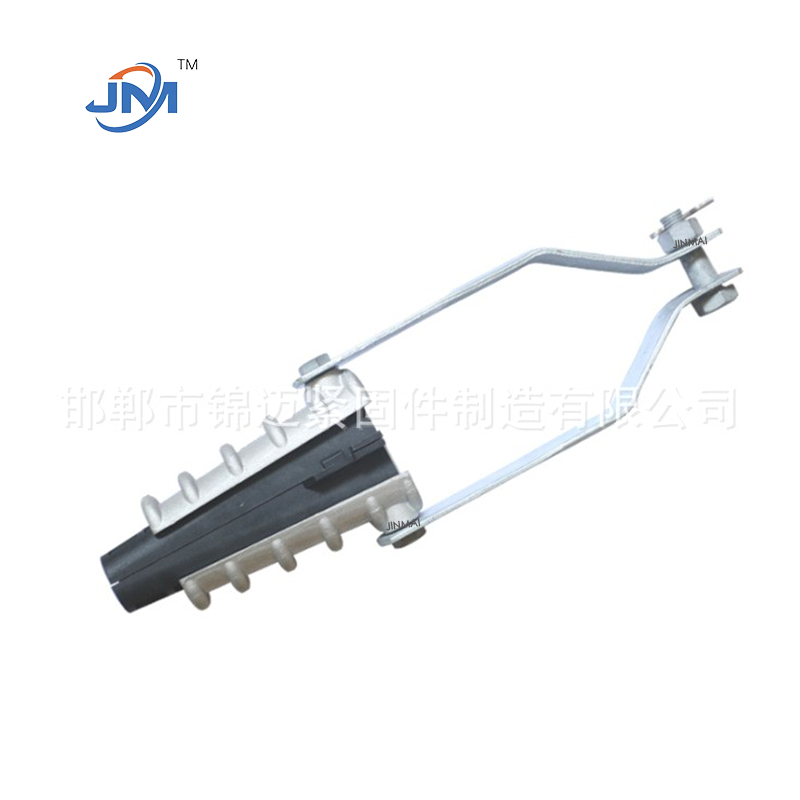

Aluminum NXJG wedge wire clamps
The NXJG series wedge-shaped aluminum wire clamp is a power fitting designed using the wedge locking principle.
It is mainly used for fixing, splicing, and branching overhead insulated conductors and bare conductors.
It is primarily used on the terminals, tension towers, and angle towers of overhead distribution lines to fix and anchor conductors or lightning protection wires to the insulator strings of the tower, thereby bearing all the tension and pull of the conductor and ultimately protecting and stabilizing the line.
Product Model Numbers:
NXJ: represents "wedge clamp" (N - domestic standard, XJ - wedge connector);
G: represents the material, usually indicating that the main body is made of high-strength aluminum alloy, which has excellent corrosion resistance and mechanical strength
Mainly models
| Model | Main Application | Applicable Conductor | Feature |
| NXJG-1 | Small Cross-Section Conductor Splicing | Insulated/Bare Wire | 16-50 mm² | Compact structure, suitable for branch lines |
| NXJG-2 | Medium Cross-Section Conductor Splicing | Insulated/Bare Wire | 70-120 mm² | High versatility, most widely used |
| NXJG-3 | Large Cross-Section Conductor Splicing | Insulated/Bare Wire | 150-240 mm² | Strong holding force, used for main lines |
| NXJG-4 | Larger Cross-Section or Special Needs | 240 mm² and above | Customized according to requirements |
| NXJG-C Type | C-type clamp, used for non-load-bearing branch jumpers | Insulated/Bare Wire | Easier installation |
Product Specifications
The outer shell of this Handan Jinmai product is made of high-quality aluminum to ensure durability and meet national standards;
The inner shell is made of high-quality nylon rubber, ensuring that it can withstand thermal expansion and contraction for a long time without deformation, and will not plasticize (crackle) even in windy and rainy environments.
With our own factory, we can customize product models and materials to meet all the needs of different customers.
Contact me if you want to know more,i will give you a video show~
Tel/whatsapp/wechat:+8613831007495
