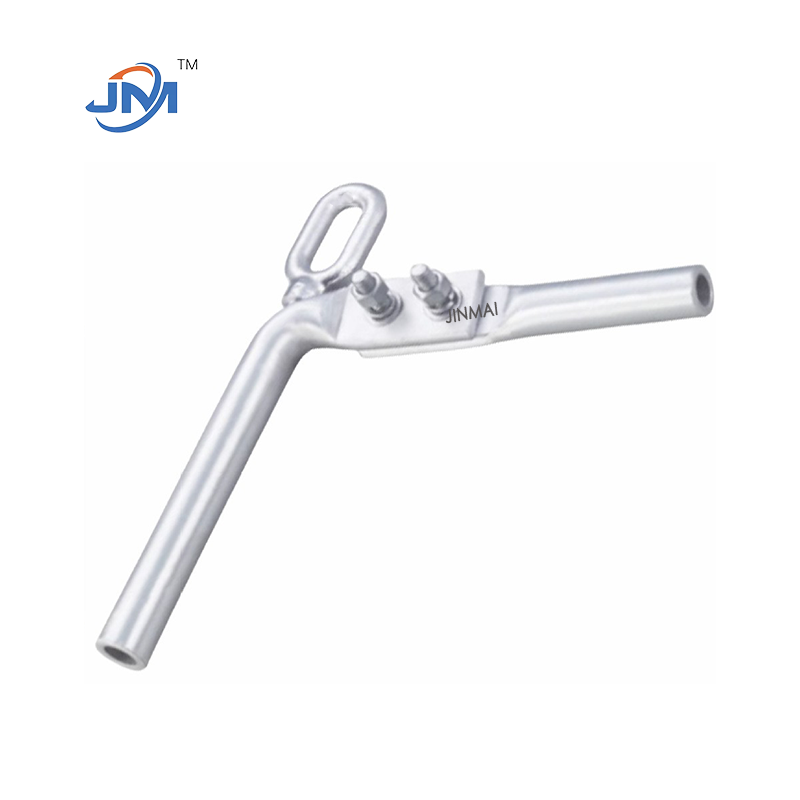

strain clamp chydraulic compression type

The hydraulic compression type tension clamp is used to fix the conductor or lightning conductor on the tension insulator string of the non-linear tower to play an anchoring role. It works by bearing the tension generated by the conductor. The NY type hydraulic compression type tension clamp is a special component in the power transmission and distribution system, which is used to fix and clamp the conductor.

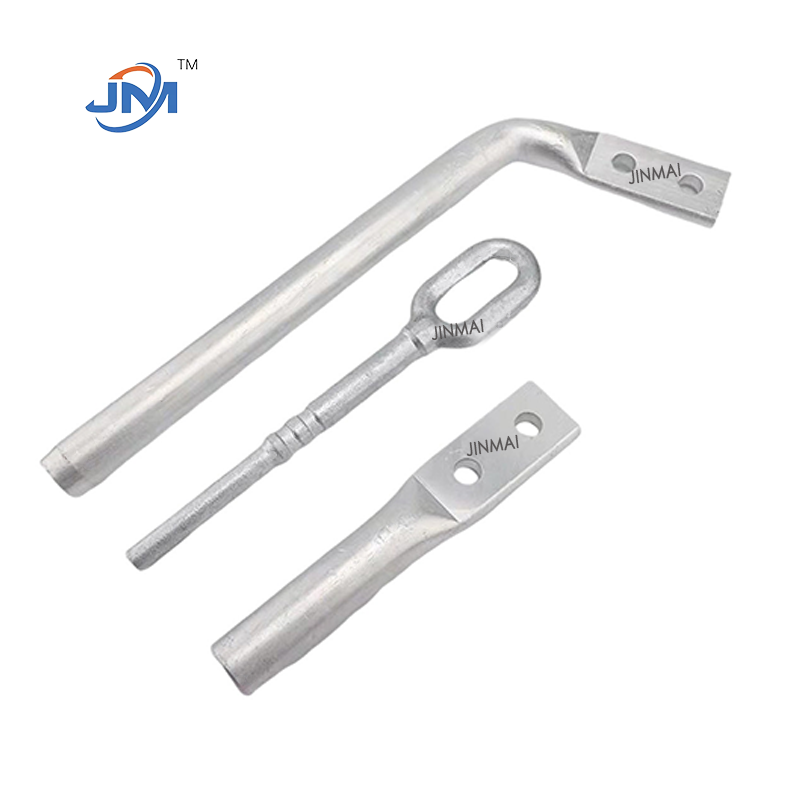

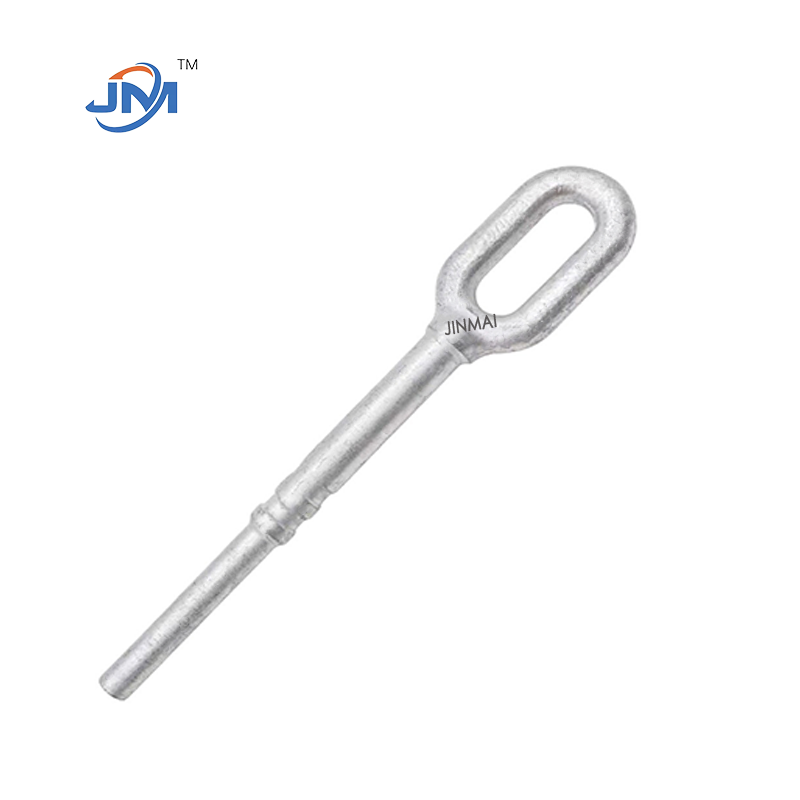

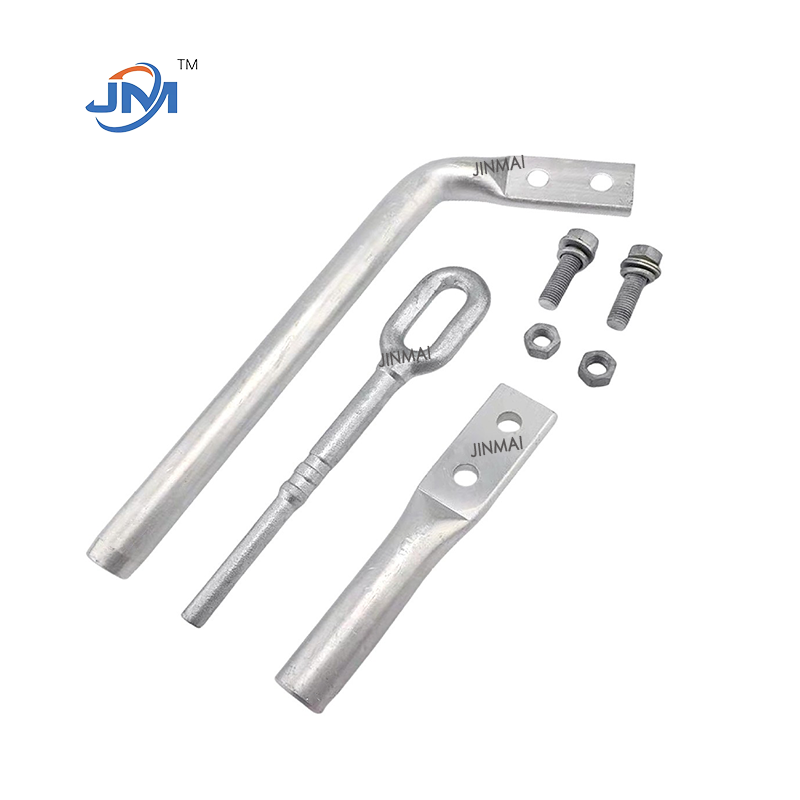

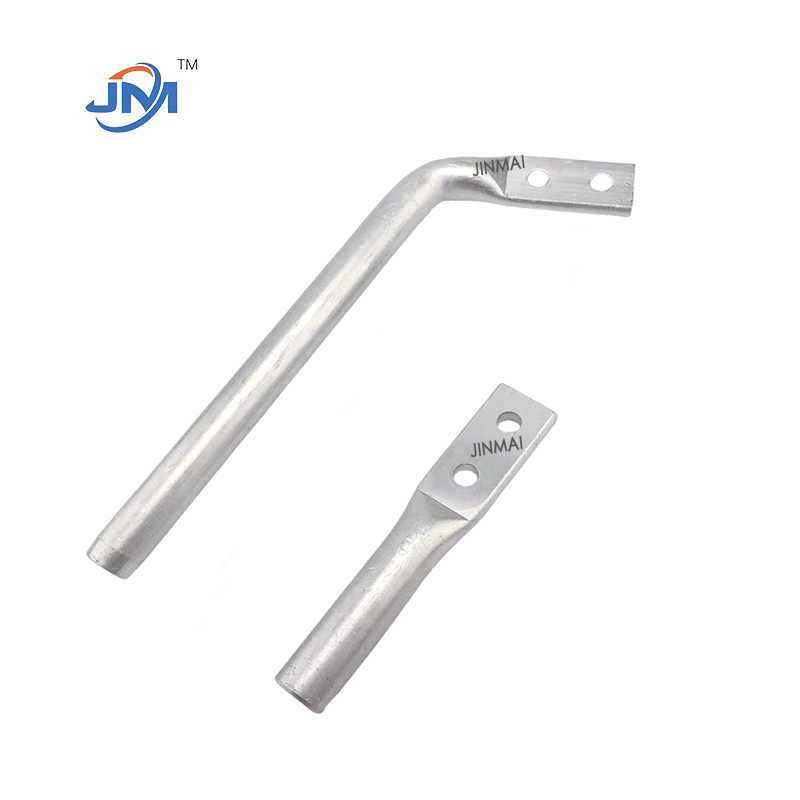

Its structure consists of: a clamp body, a steel anchor, a drain plate body and a drain clamp. The hollow tube body of the clamp body and the steel core of the steel anchor are fixed by hydraulic crimping. One end of the clamp body is bent to form the drain plate body. The drain plate body and the drain clamp are connected by screws, and the connection part is provided with an adjustable structure, which can realize continuous adjustment, flexible use and strong adaptability.

Material introduction: It is made of high-strength aluminum and steel materials, with a smooth surface, long service life, easy installation, no hysteresis loss, low carbon and energy saving; the clamp body is made of high-strength aluminum alloy, and the bolts are made of galvanized steel, which is durable and corrosion-resistant. The clamp is suitable for electrical infrastructure such as overhead power lines and substations. It can work effectively in a temperature range of -40℃ to +105℃. It is resistant to UV rays, weather, chemicals and high humidity. It has the advantages of strong grip, adjustable, safe and reliable.

For the size:Select by Model.

NY-240/30H 、NY-300/40H、NY400/35H、NY-400/50H、NY-500/45H、NY-630/45H、NY-630/55H、NY-630/80H、NY-720/50
