Pole Top Pin for Insulator

Pole Top Pin for Insulator:

Because it is used on the insulator and is used together with the insulator, it is also called the insulator rod pin. It is an important accessory used in power transmission and distribution lines.

Why use it?

1. It can support the insulator: it is mainly used to support the pin insulator on the top of the pole to ensure that the insulator can be firmly installed on the pole, thereby providing reliable insulation and support for the overhead wire.

2. Easy to install and maintain: its design allows easy replacement of insulator units or related accessories without removing the insulator string.

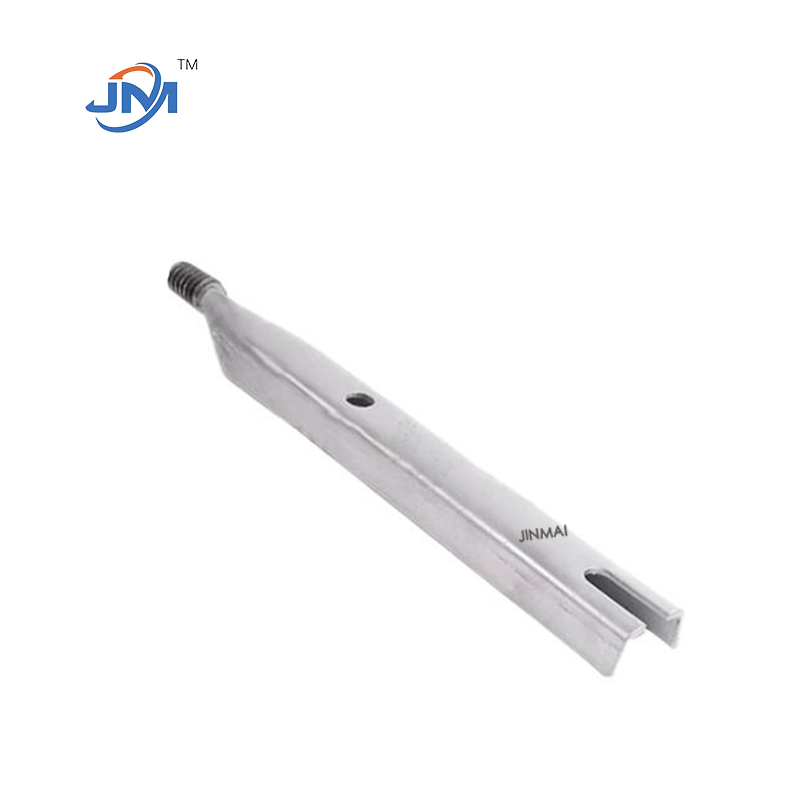

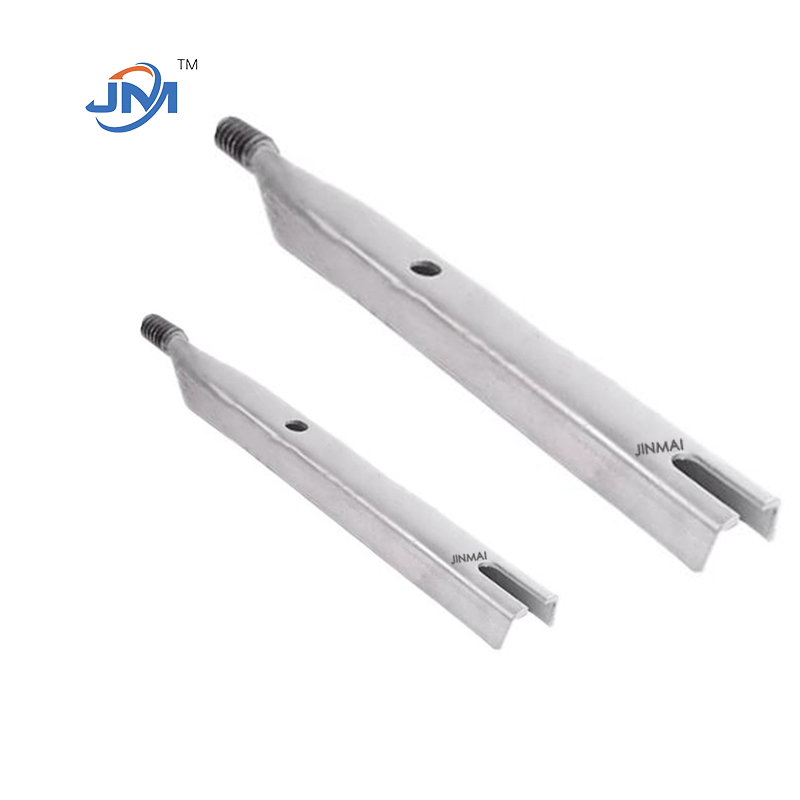

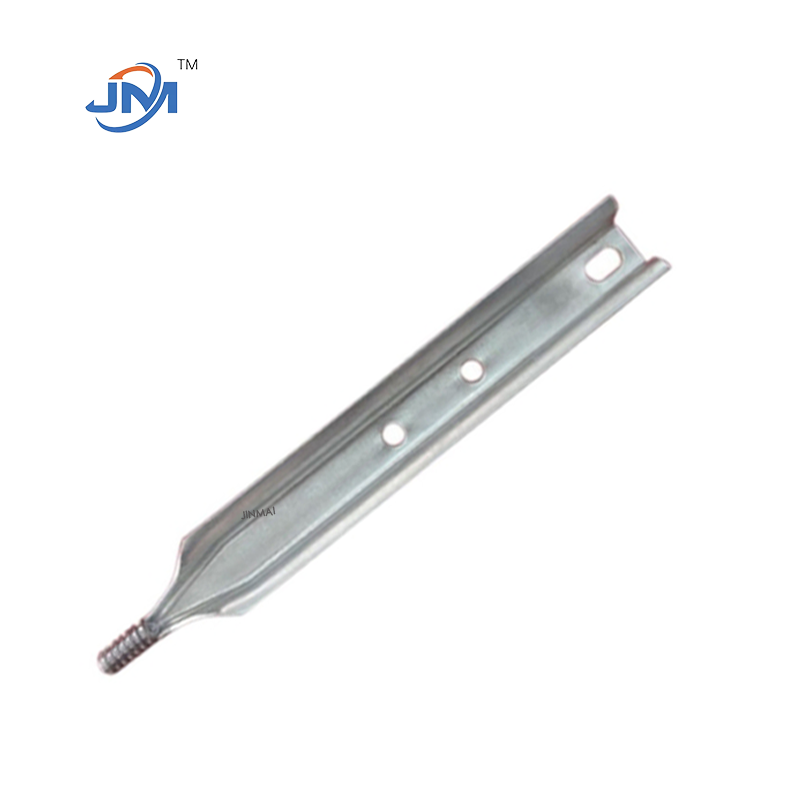

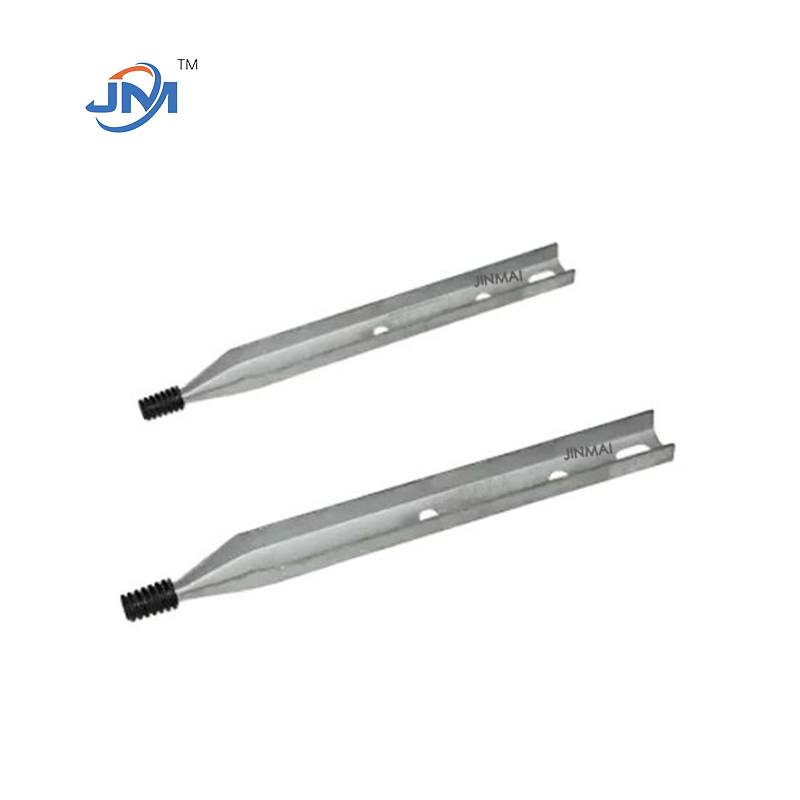

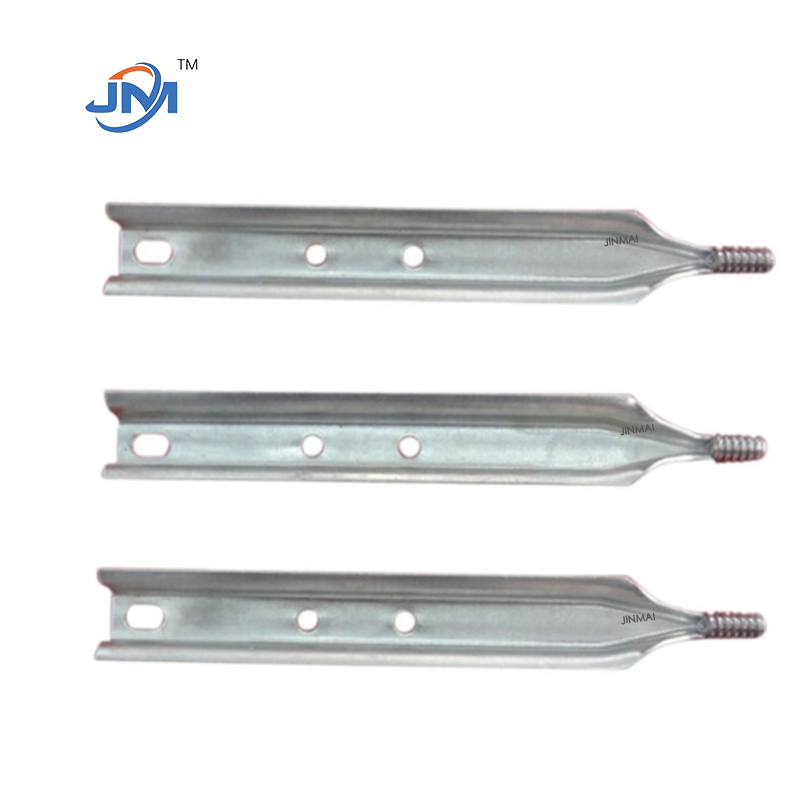

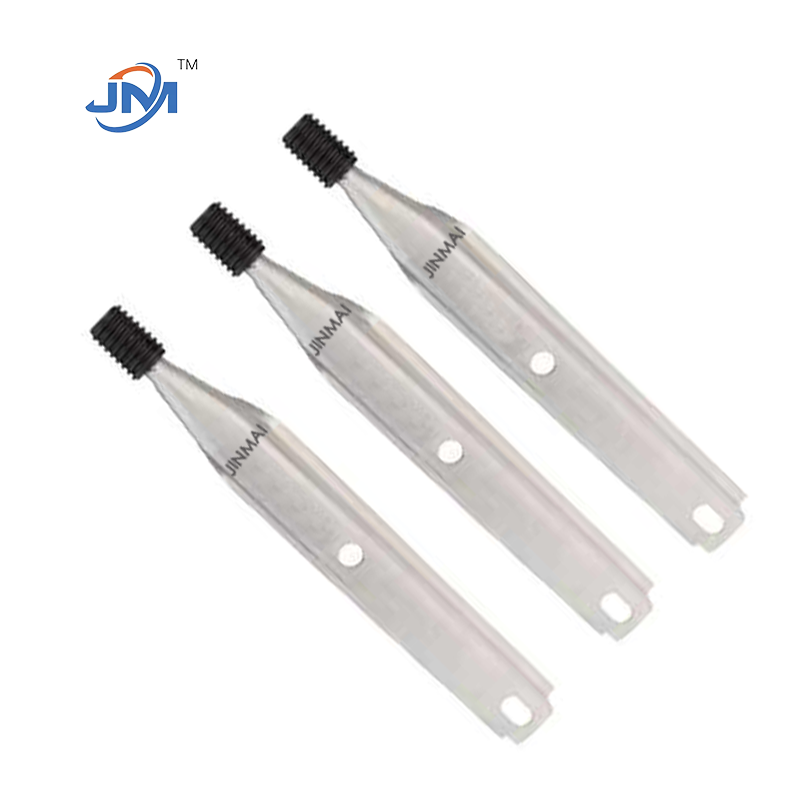

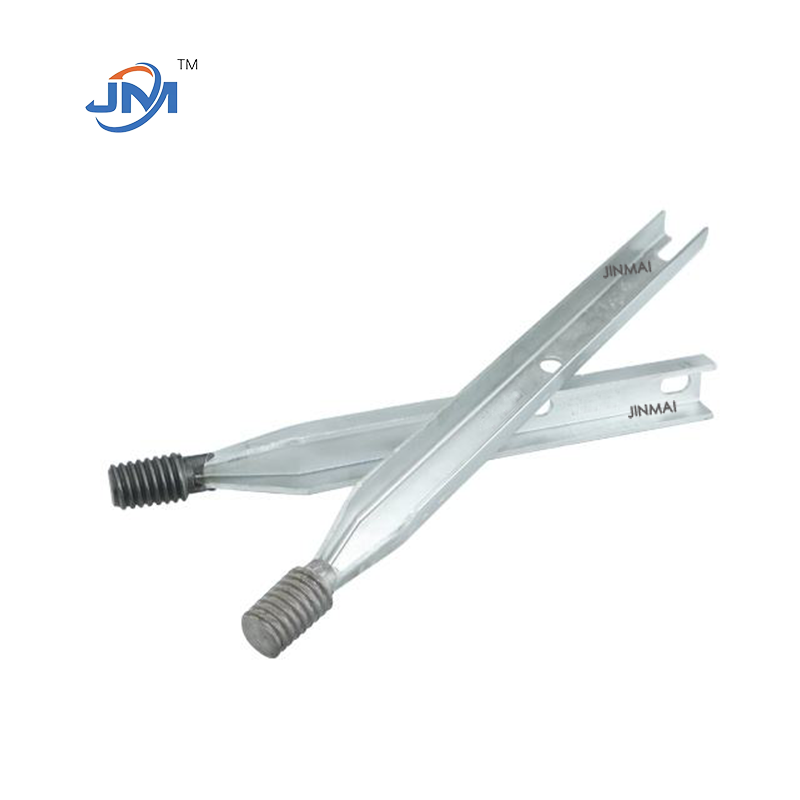

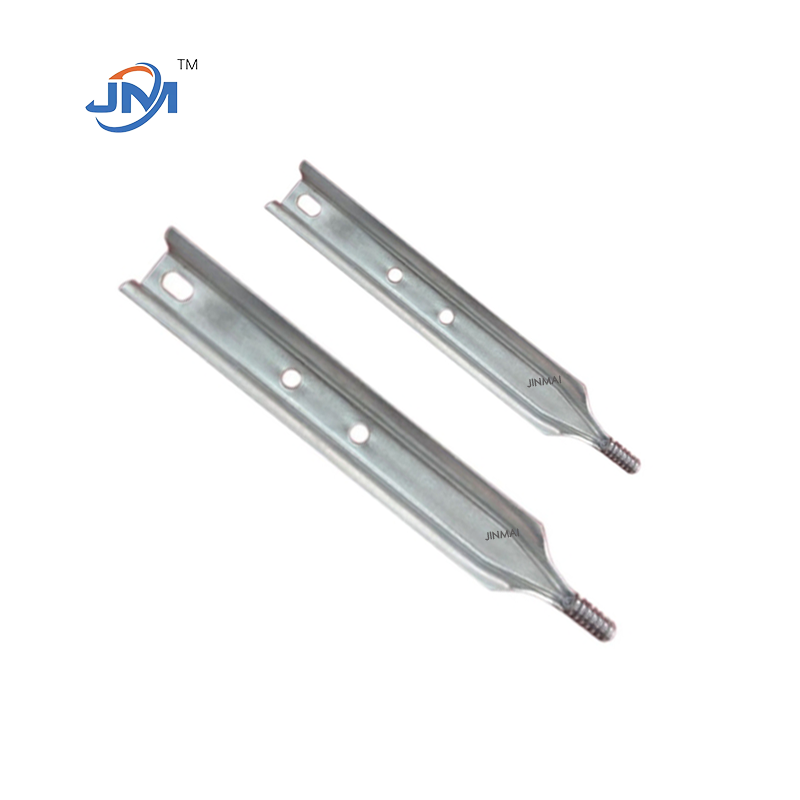

Material and construction (as shown in the figure)

1. Main body material: usually made of hot-dip galvanized steel, this material has high tensile strength and corrosion resistance, and can withstand harsh natural environments such as high temperature, dust, moisture and chemical erosion.

2. Insulator wire material: the insulator wire part has nylon alloy or cast lead and other materials to choose from.

3. Structural design: generally in the shape of a straight rod, with holes or slots for installation and fixation at the bottom, and threads or holes matching the insulator at the top.

Specifications and sizes: Common lengths include 18 inches, 20 inches and 24 inches.We are the manufacturer ,so we can do all size as you need.Just contact me if you want to know more~
