Factory supply PAL1500 for LV ABC Aerial Cable Anchoring

Factory supply PAL1500 for LV ABC Aerial Cable Anchoring

PAL1500 Tension Clamp：Ultimate Guide for LV ABC Aerial Cable Anchoring

1. What Is PAL1500 Tension Clamp?

The PAL1500 tension clamp (PA1500 ABC cable anchoring clamp) is a high-performance wedge-type dead-end fitting dedicated to low-voltage ABC aerial bundled cables. As a popular overhead line hardware for global power distribution upgrades, it features fully insulated, tool-free installation, rust-proof and maintenance-free performance, perfectly replacing traditional metal clamps and ideal for outdoor aerial cable tension fixing and termination anchoring.

2. Material Structure & Insulation Performance

PAL1500 adopts high-quality composite anti-aging materials, realizing full insulation and ultra-long outdoor service life:

Clamp Body: High-strength modified PA66 nylon, UV-resistant, crack-proof and fully insulated, not affected by extreme outdoor weather.
Self-Locking Wedge: Flexible polymer material, fits cable sheath closely with uniform clamping force, zero damage to cable insulation.
Metal Accessories: Stainless steel or hot-dip galvanized parts, excellent anti-rust and anti-corrosion for coastal, desert and industrial harsh environments.

All materials comply with IEC and NFC 33-041 international standards, ensuring safe double-insulation power line operation.

3. Technical Specifications

Applicable Cables: 16–50mm² LV ABC aerial cables, cable diameter Φ8mm–Φ12mm
Minimum Breaking Strength: 15KN heavy-duty tensile resistance
Working Tension Angle: 45° single-side / 90° double-side tension
Operating Temperature: -40℃ to +85℃, suitable for global extreme climates
Industry Standard: NFC 33-041, IEC certified
Service Lifespan: 30+ years maintenance-free outdoor service

4. Why Choose PAL1500 ABC Cable Clamp?

Driven by global grid upgrading and wood pole to steel pole replacement trends, the PAL1500 tension clamp has become a top-choice overhead fitting for overseas contractors, distributors and power utilities. It solves major drawbacks of traditional hardware: easy rust, cable damage and high maintenance cost. With low procurement cost, fast installation, high safety and long service life, it delivers outstanding cost performance for mass power distribution projects.

5. Packaging & Export Service

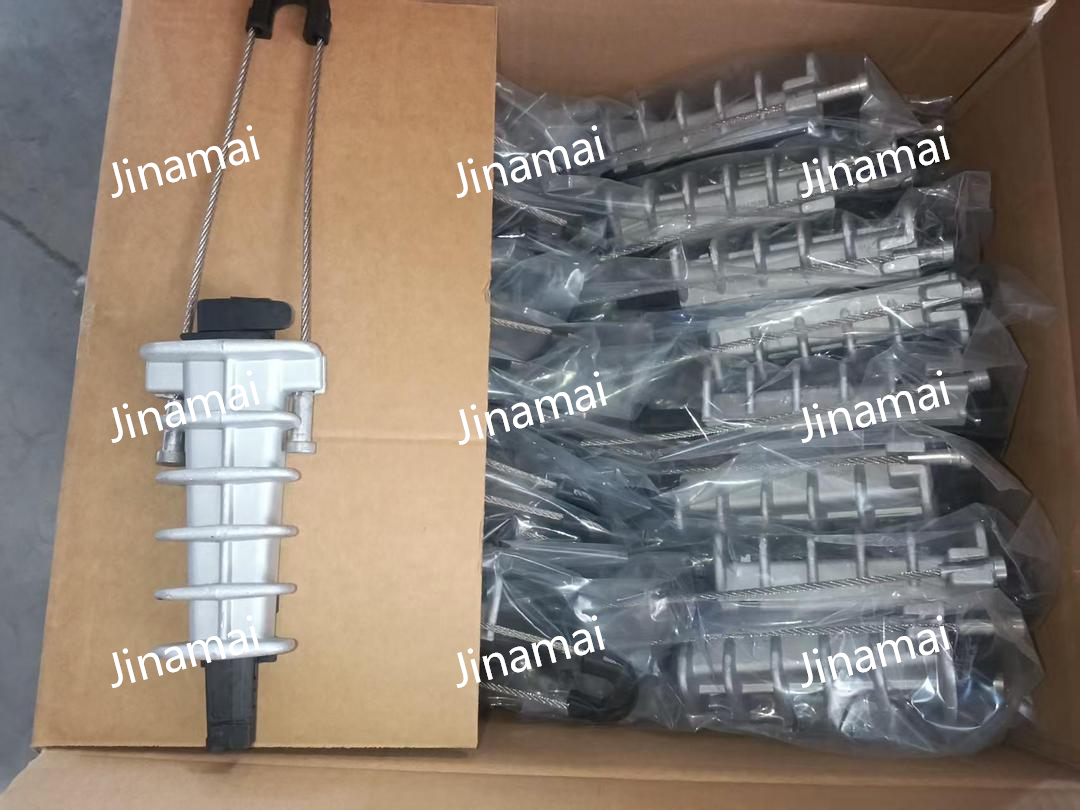

Standard export carton packaging with customized OEM/ODM support. All products are equipped with complete certification documents, test reports and English installation manuals, fully meeting international engineering procurement and export standards.

And we also can supply PAL2000/PAL2500/PAL3000 and so on ,with all customer need ,we can supply
