Factory supply Preformed Guy Grip Dead End

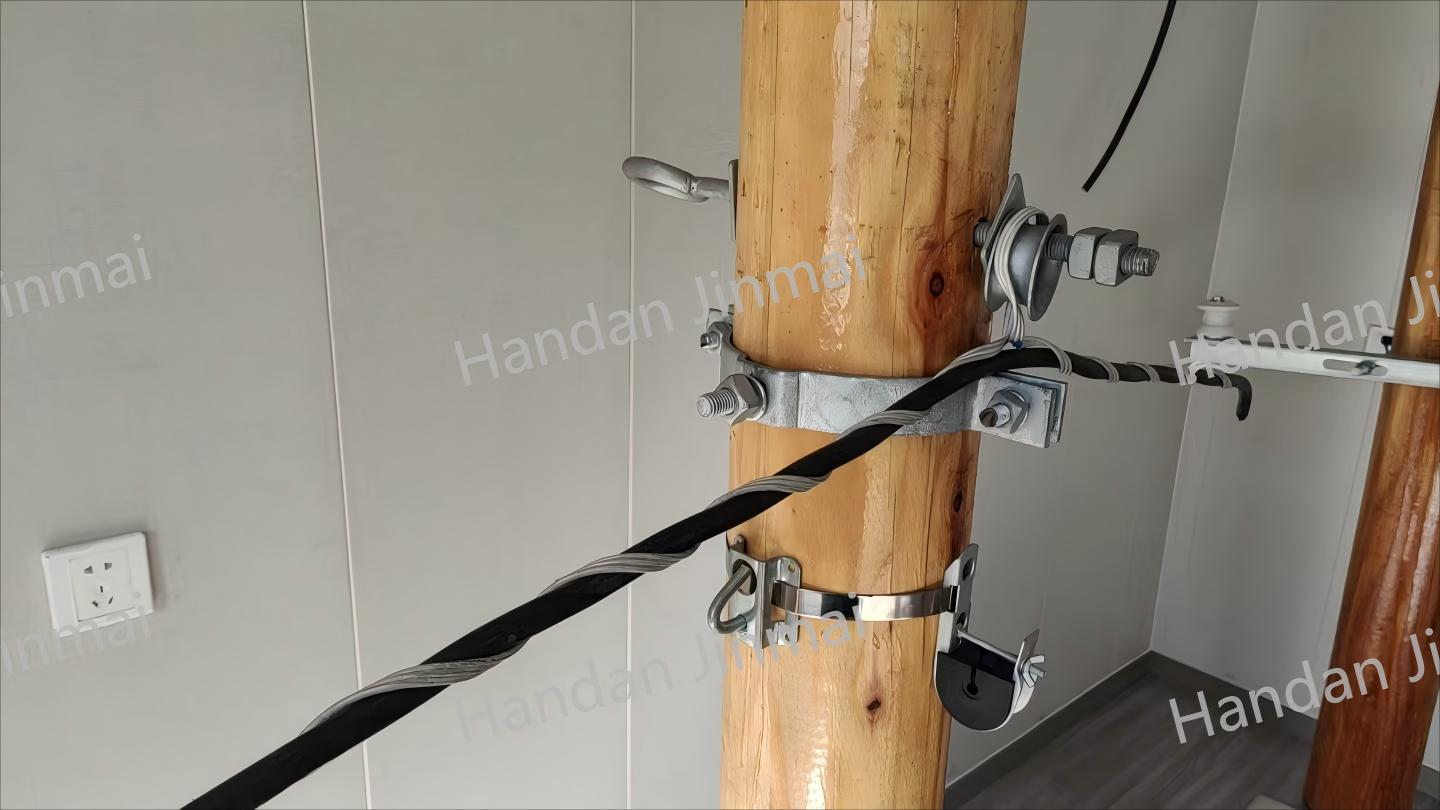

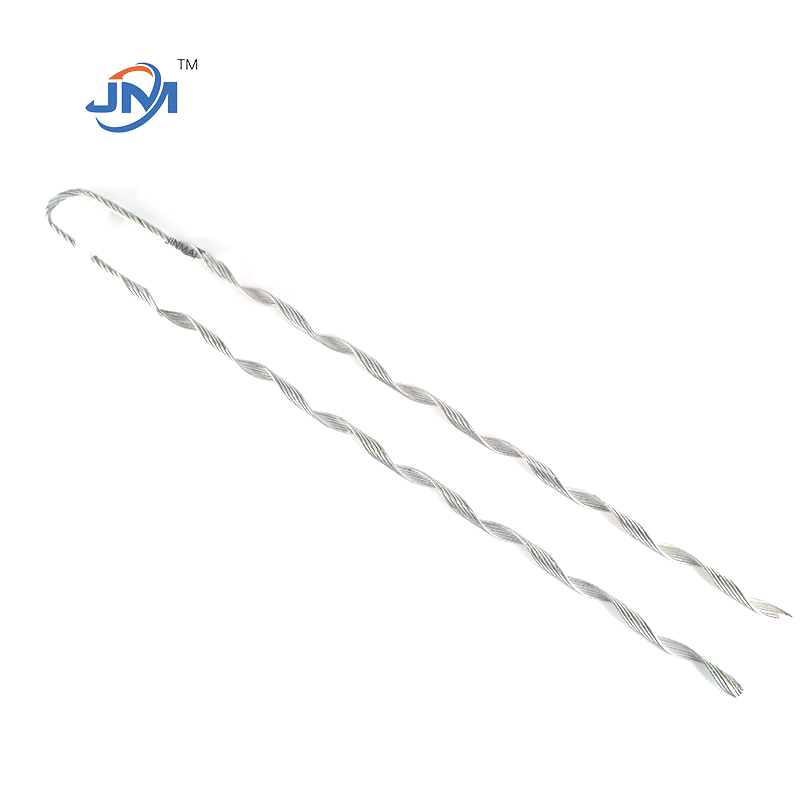

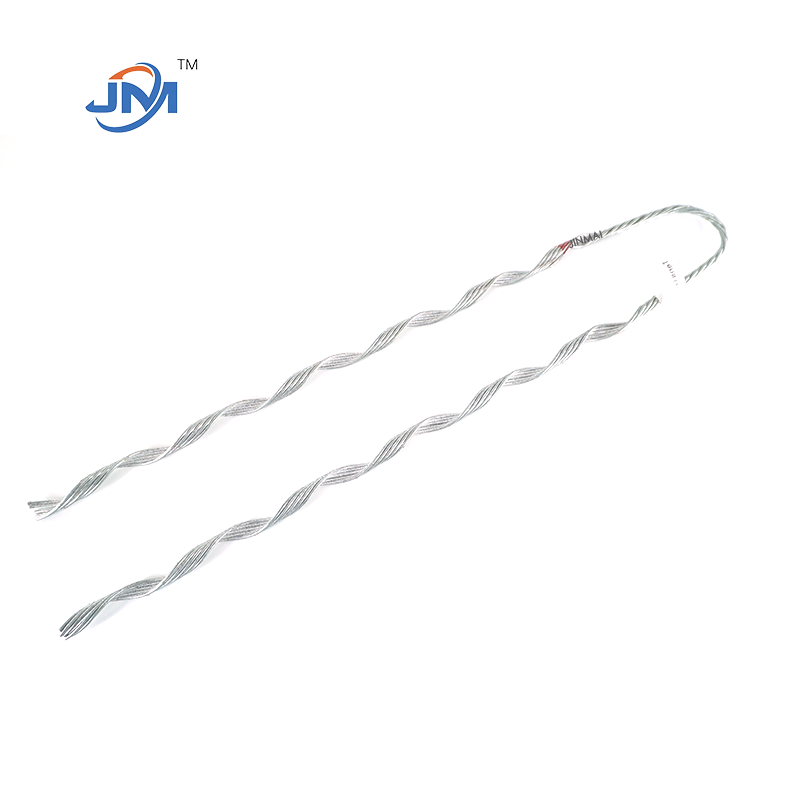

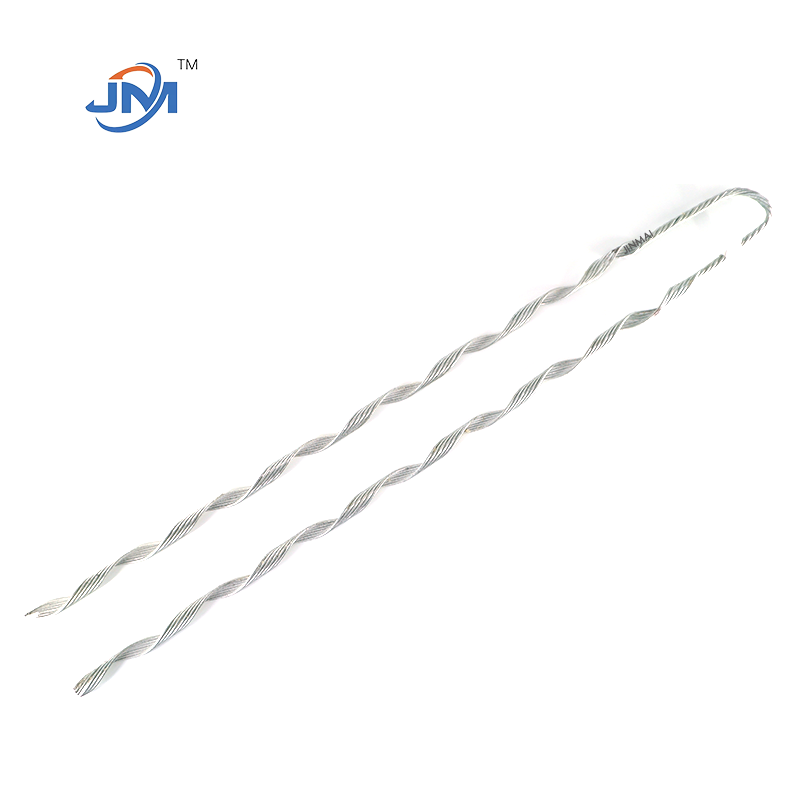

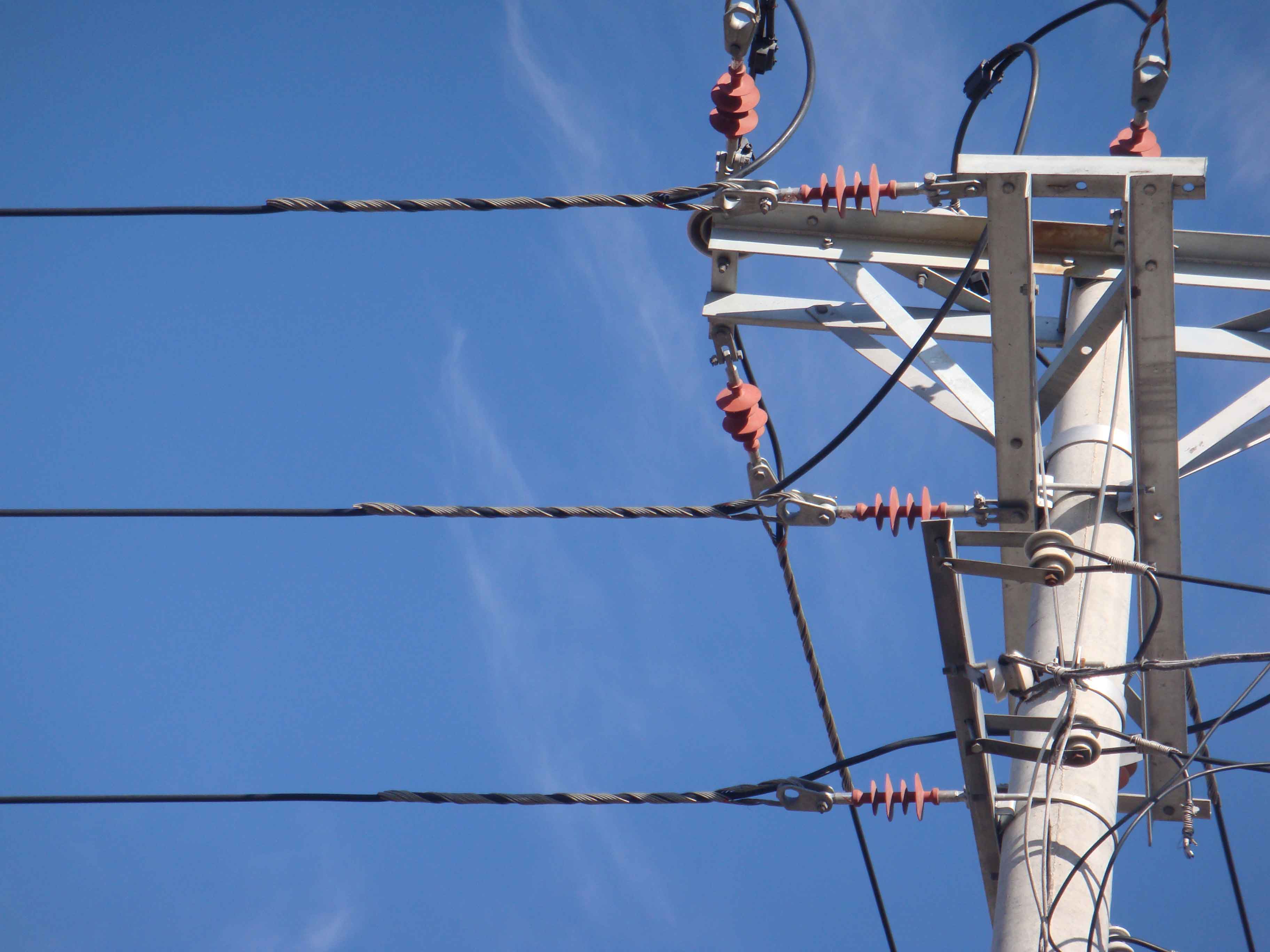

It is a device used in power transmission lines, distribution lines, communication lines, and substations. It consists of a set of high-strength steel wires (or rods) pre-wound into a spiral shape. During installation, it is wound around a guy wire, and the huge friction and gripping force fix the end of the guy wire and bear the tension. It serves to protect the wires and cables.Like the picture show~
Specifications selection for Handan Jinmai's Guy Grip:
Regarding materials, we can provide a variety of options, including aluminum alloy, aluminum-clad steel wire, galvanized steel wire, and a matte black finish.
(1)Galvanized steel wire: For general environments.
(2)Aluminum-clad steel wire: Offers superior corrosion resistance and a more harmonious appearance compared to galvanized steel wire.
(3)Hot-dip galvanized cast steel or forged steel: Provides high strength and excellent corrosion resistance.

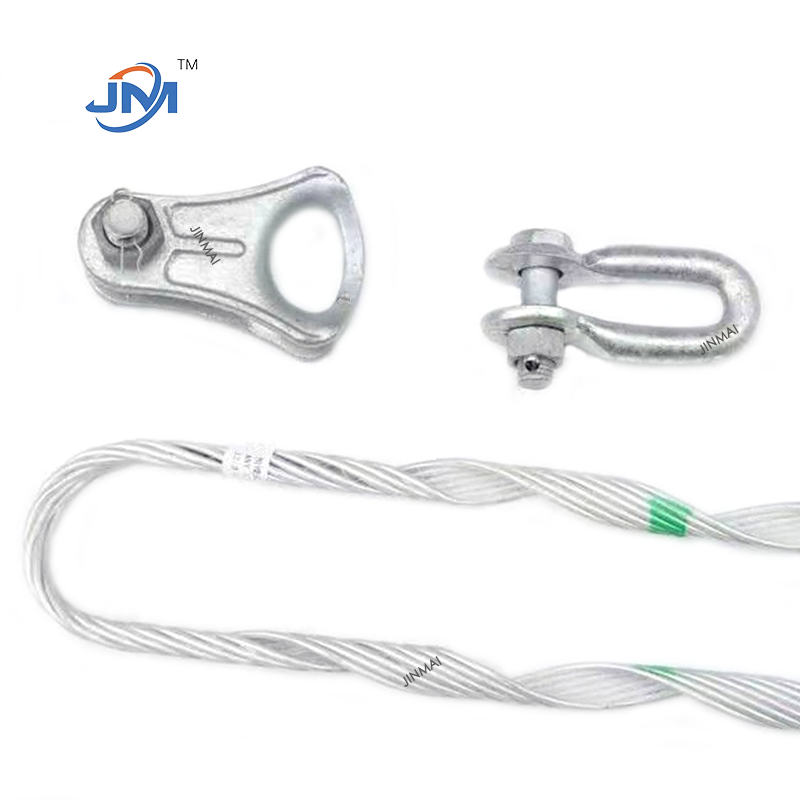

For the size ,we can do the design as your need according your cable diameter and weight ,and we also can supply the accessories like O ring or Thimble with all size you want .
Common guy wire specifications (taking galvanized steel strand as an example) and corresponding prestressed wire clamp models include:
| Applicable wire specifications (mm) | SIZE | Length (mm) | Rated working load (kN) | Remark |
| GSW 9.5 mm | 3/8" | 1500 - 2000 | About 70 - 90 | Used for power distribution lines and lightweight poles. |
| GSW 11.1 mm | 7/16" | 1800 - 2200 | About 100 - 120 | Common Specifications |
| GSW 12.7 mm | 1/2" | 2000 - 2500 | About 130 - 160 | Common Specifications |
| GSW 15.9 mm | 5/8" | 2500 - 3000 | About 200 - 250 | Used for power transmission lines and heavy-duty towers |
| GSW 19.1 mm | 3/4" | 3000 - 3500 | About 280 - 350 | Used for long spans and terminal towers |
When selecting a cable, please be sure to consider the type, diameter, and required tension. Feel free to contact us at any time; Handan Jinmai supports customization of various products and sizes.
