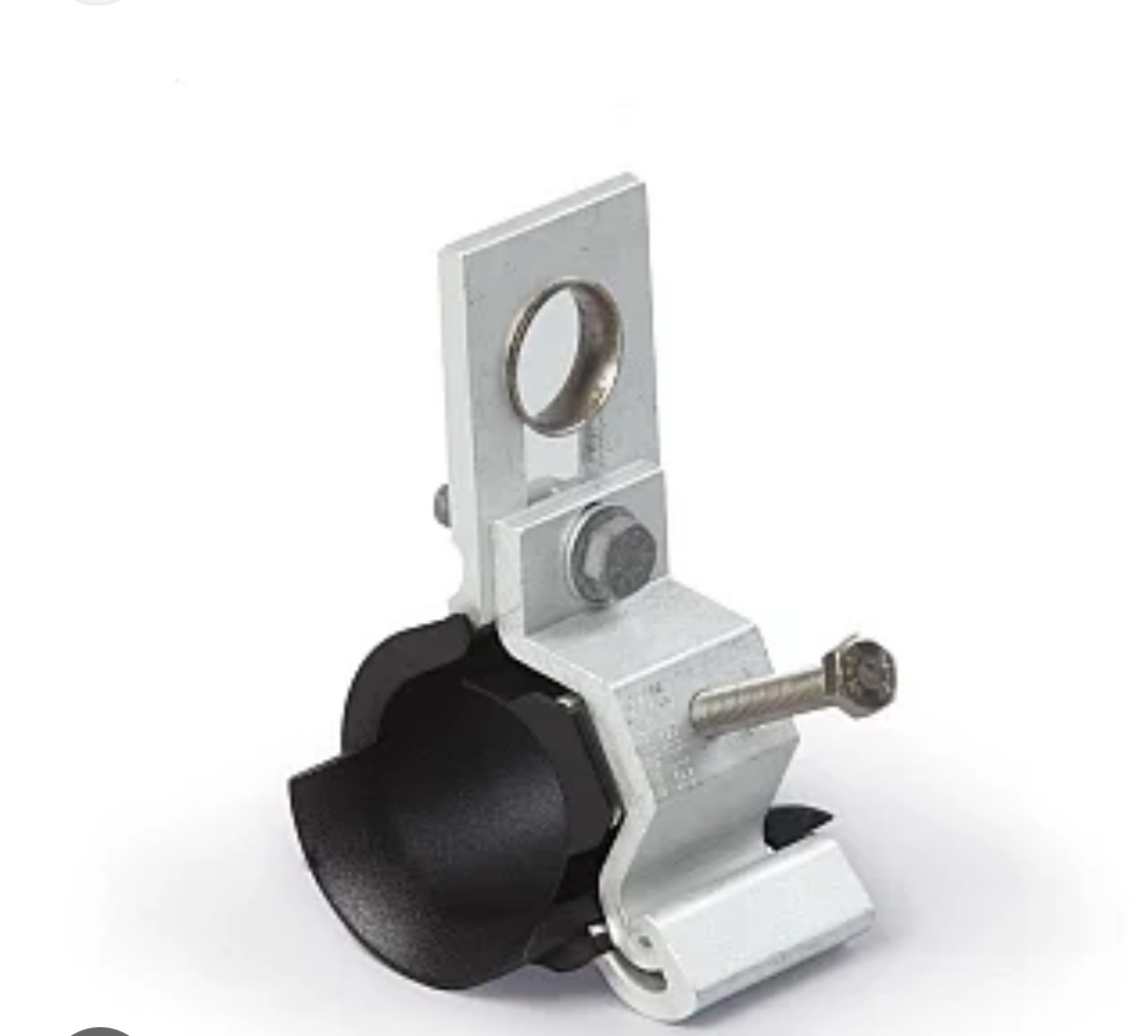

LV suspension clamp

Low-voltage suspension clamps are a seemingly simple yet crucial connection component in power transmission and distribution systems, widely used in low-voltage overhead lines. Their primary function is to suspend, hold, and secure conductors at straight poles or support points, while ensuring the electrical safety and mechanical stability of the line.

 For this type is Intermediate support fixture,It uses wire cross-section (mm²): 4x25-120;

 Breaking load (kN): 7;

 Working load (kN): 5;

The clamp is mounted on a hook with a maximum diameter of 21 mm.

It bears the vertical load of the conductor (self-weight, ice load, wind load) and suspends it reliably in the air.

Materials and Construction

Main body (housing): Typically constructed from high-strength aluminum alloy (such as AL6061 or AL6063). Aluminum alloy offers advantages such as light weight, high mechanical strength, excellent corrosion resistance, and excellent electrical conductivity.

Internal: Made from high-quality rubber, it is durable and resistant to aging. It is also flexible and wraps around the cable without damaging the cable's outer casing.

Fasteners: Bolts and nuts are hot-dip galvanized. Electrogalvanized or stainless steel are also available, depending on the intended use.

Handan Jinmai,the  professional manufacturer of electrical hardware, we have been continuously expanding our production scope and improving our product categories. We have stood out in the Chinese electrical hardware market with our high-quality and low-cost products and have won the trust of our customers.
