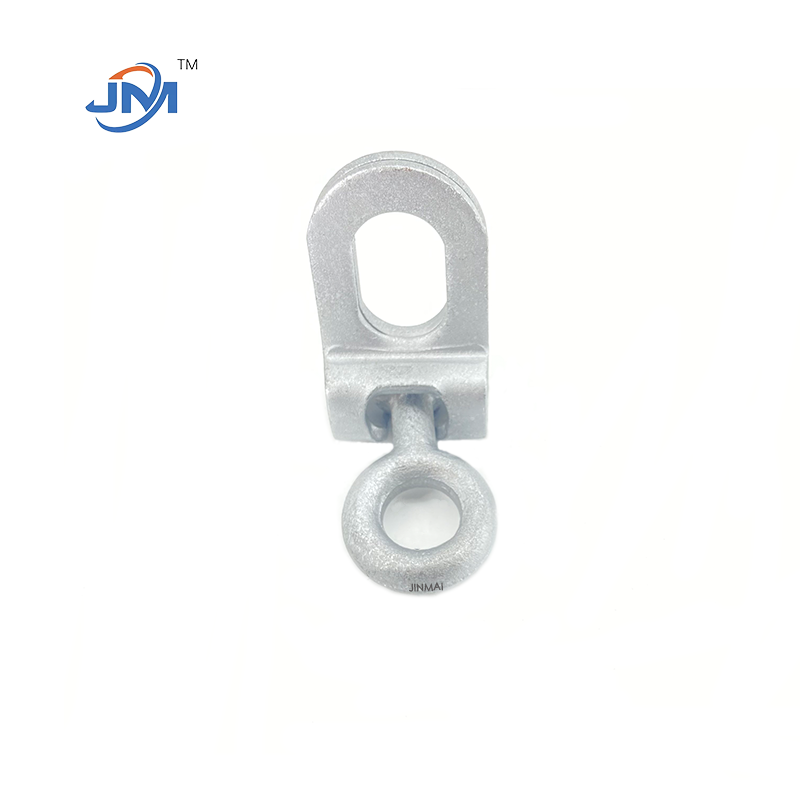

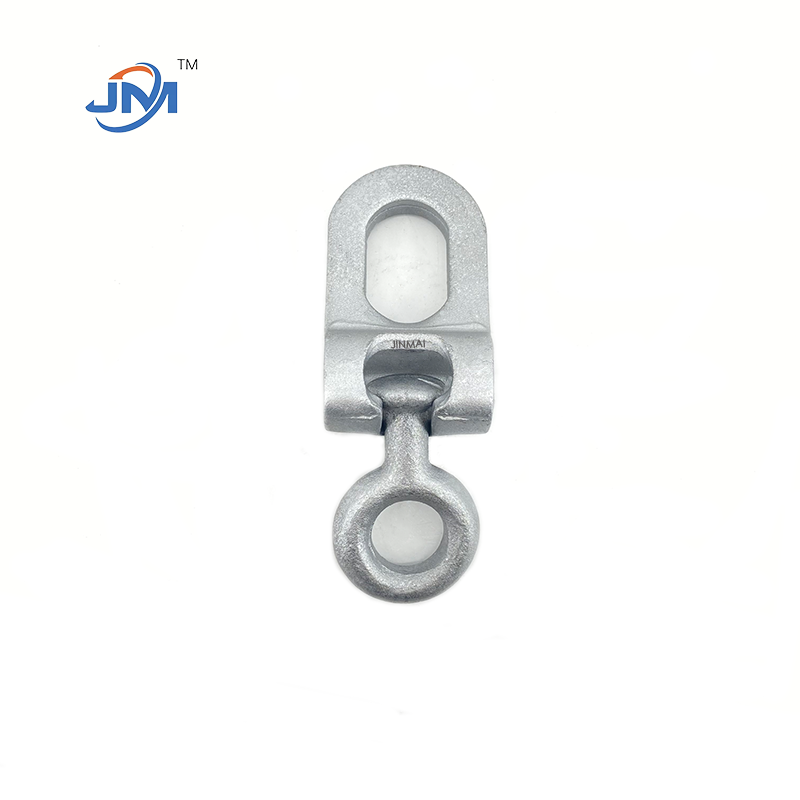

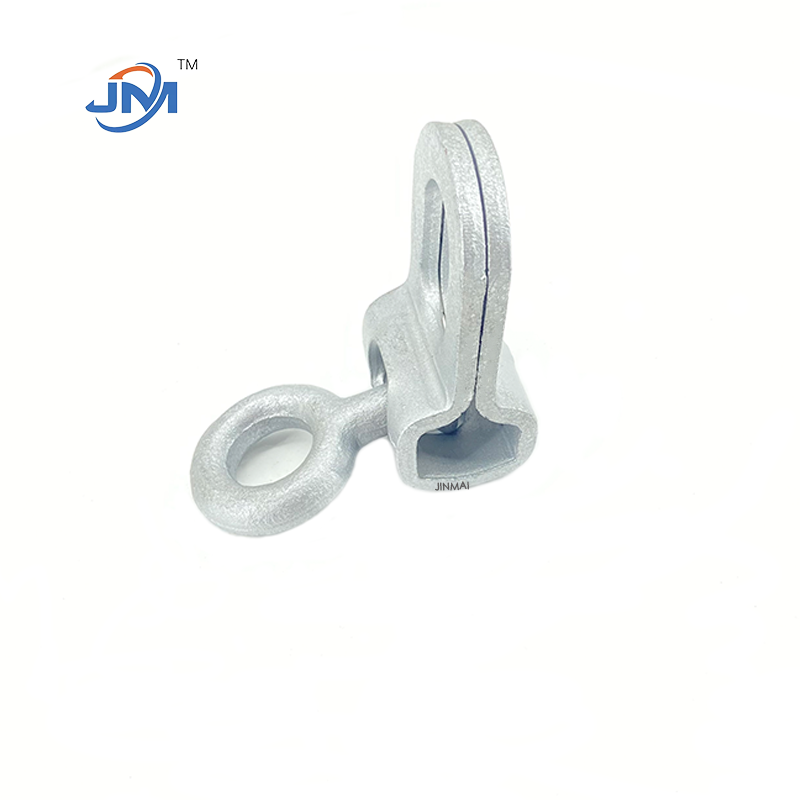

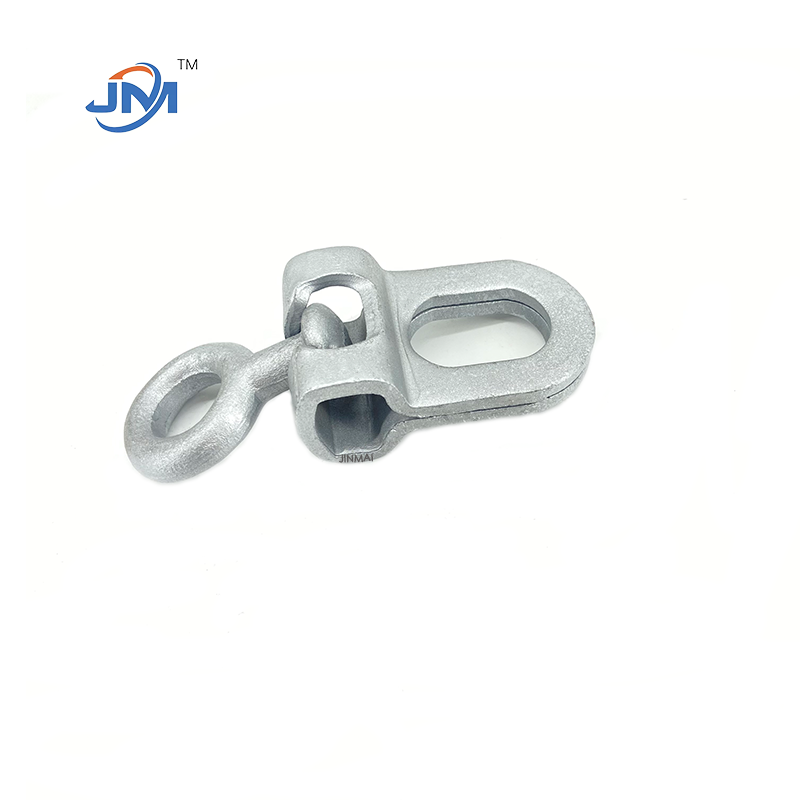

Ball eye with Eye end Hanging Ring

1. Product Introduction

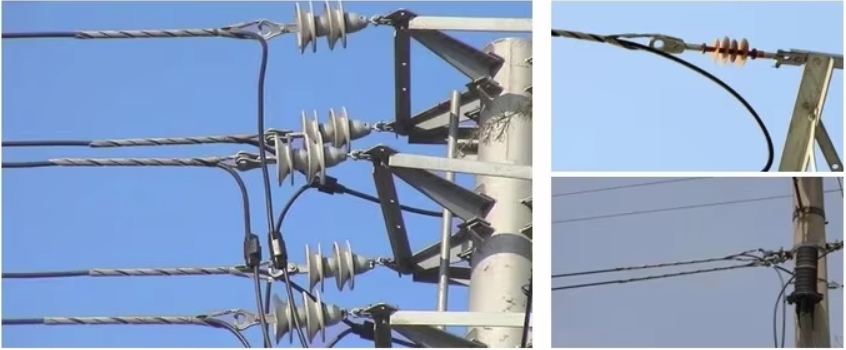

The Ball Eye Hanging Ring is an important connection component in power fittings, mainly used for the suspension and connection of insulator strings in high-voltage transmission lines and substations. It cooperates with insulators or other fittings through a ball-and-socket structure to achieve flexible rotation and adjustment (as shown in the picture) to adapt to the mechanical load and angle changes of the line and ensure the safe and stable operation of the power system.

2. Product Structure and Features

(1) Structural Composition

Ball End: It adopts a spherical design and can be flexibly connected to the ball-and-socket hanging plate or other matching fittings, allowing free rotation at a certain angle.

Eye End: It is usually a ring or U-shaped structure, used to connect with suspension clamps, tension clamps or insulator strings.

Material: It is generally forged from high-strength carbon steel (such as Q235, Q345), and the surface is treated with hot-dip galvanizing to improve corrosion resistance and mechanical strength and extend service life.

(2) Product Features

✔ High mechanical strength: The forging process ensures that the hardware can withstand large tensile and bending loads.

✔ Flexible rotation: The ball head structure allows the conductor to swing freely when the wind or temperature changes, reducing mechanical stress.

✔ Corrosion resistance: The hot-dip galvanized layer (≥80μm) effectively resists rust in harsh environments.

✔ Standardized design: Complies with power hardware standards such as GB/T 2314 and DL/T 759 to ensure interchangeability and safety.

3. Main uses

The ball head hanging ring is widely used in:

High-voltage transmission lines: Used in conjunction with suspension insulators (such as XP-70, XWP2-70) to form an insulator string.

Substation architecture: Used in scenarios such as busbar support and jumper suspension.

Tension tower: Cooperate with tension clamps to withstand the tension of the conductor.

4.Size choose

Handan Jinmai is a professional manufacturer of electrical fittings, equipped with professional engineers to design products, so we can customize a variety of sizes.
